Radium Fuel Rails, Top Feed Upgrade, Subaru EJ

20-0567-02 FUEL RAILS, TOP FEED UPGRADE, SUBARU EJ

VEHICLE COMPATIBILITY
02-14 Subaru Impreza WRX (USDM)
07-14 Subaru Impreza WRX (JDM/EDM)
07-21 Subaru Impreza WRX STi
06-13 Subaru Forester XT
01-03 Subaru Legacy GT (JDM)
07-12 Subaru Legacy GT
07-12 Subaru Outback XT
05-06 Saab 9-2X Aero

FUEL INJECTOR COMPATIBILITY
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

OVERVIEW
These fuel rails have the same mounting and injector spacing as the 20-0577-02. However, these fuel rails feature a 8AN ORB port machined in the underside center of each fuel rail, as shown below.

NOTE: The center port bulge can create an interfere with early AVCS solenoids found in the EJ207 and JDM EJ205. If this is the case, use P/N: 20-0577-02 below.

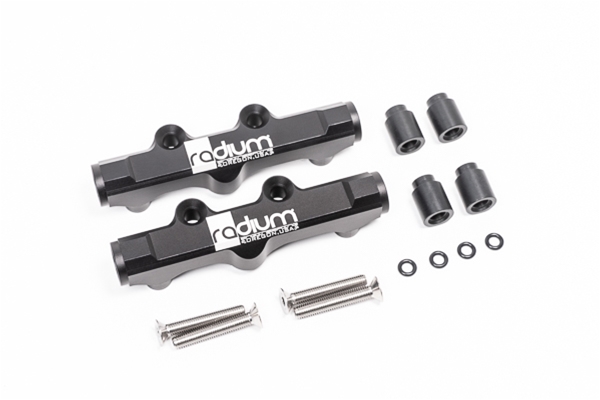

INCLUDED
-Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-Thermal Insulating Press-In Spacers, 20mm (x4)
-Stainless Steel M8x1.25 Mounting Bolts (x4)
